LBV310-XXCNDTKMX

Level sensors

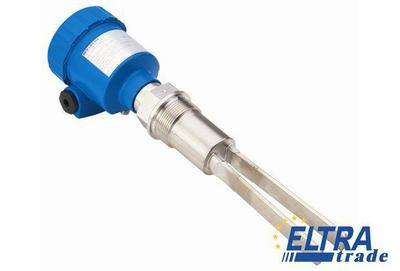

Sick LBV310-XXCNDTKMX
852.45 EUR

Specification:

Part Number6038136
Power consumption:< 10 mA
Connection type:M20x1,5
Hysteresis:10 mm
Medium:Bulk solids
Signal voltage LOW:< 1 V
VDE protection class 2:+
Signal voltage HIGH:Uv - 3 V
Repeatability:± 5 mm
Fill material density:0.008 g/cm
Housing material:Plastic
Probe length:220 mm
Particle size:< 10 mm
Sensor material:Stainless steel 1.4404
Initialization time:2 s
Enclosure rating:IP 66
Switching output:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
Process connection:1 1/2" NPT PN 25 / 316L
ATEX certification:-
Ambient temperature operation:-40 °C ... 80 °C
Inductive load:1 H
Capacitive load:100 nF
Response time:500 ms
Output current:< 300 mA
Ripple:<= 5 Vpp
Accuracy:± 10 mm
Measurement:Switch
Process pressure:-1 bar ... 25 bar
Ambient storage temperature:-40 °C ... 80 °C
Process temperature:-50 °C ... 150 °C
