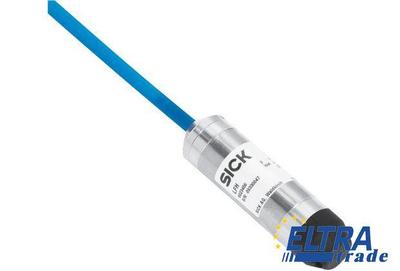

Sick LFH-SBX60G1AS15SZ0

Hydrostatic level sensor LFH
Sick LFH-SBX60G1AS15SZ0
Price on Request
One click request

Specification:

Part Number6040948
Output signal:4...20 mA
Non-linearity:≤ ± 0.2 % (of span (Best Fit Straight Line, BFSL) according to IEC 61298-2)
Protection class III:+
Storage temperature:-30 °C ... 80 °C
Long-term drift/one-year stability:≤ ± 0.2 % Of span (at reference conditions)
Enclosure rating:IP 68
Supply voltage:10 V DC ... 30 V DC
Electrical safety:Short-circuit protection: QA towards M, Protection class: III, Surge protection: According to EN 61000-4-5 (1.5 J) optional for enhanced varient, Reverse polarity protection: L+ towards M
Pressure type:Gauge pressure
Wetted parts:Pressure connection/ diaphragm: Stainless steel, Housing: Stainless steel, Protection cap: PA
Weight sensor:0.18 kg
Weight cable:0.08 kg/m
CE-conformity:EMC directive: 2004/108/EC, EN 61 326-2-3
Dielectric strength:500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even under fault conditions)
Process temperature:-10 °C ... 50 °C
Connection type:Cable PUR
Temperature coefficient in rated temperature range:Mean TC of span ≤ 0.2 % of span / 10 K, Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar)
Measuring range: 0 bar ... 0.6 bar
Rated temperature range:0 °C ... 50 °C
CE-conformity:+
Non-repeatability:≤ ± 0.1 % of span
Accuracy:<= +/- 0.5 % (of span)
