LFV230-XXTGBTPM0600

Level sensors

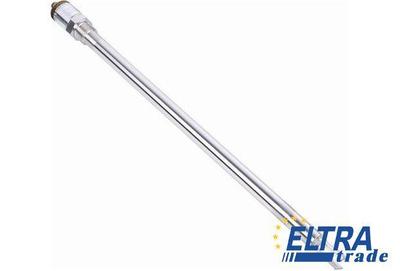

Sick LFV230-XXTGBTPM0600
399.38 EUR

Specification:

Part Number6041911
Signal voltage HIGH:Vs - < 3 V
Inductive load:≤ 1 H
Initialization time:< 2 s
Process connection:G ¾ A PN 64
Temperature drift:0,03 mm/K
Signal voltage LOW:0 V +- 1 V
Viscosity:0.1 mPas ... 10,000 mPas
Housing material:Stainless steel 1.4404, PEI
Resolution:≤ 1 mm
Probe length:600 mm
Silicon free:-
Response time:500 ms
Measurement:Switch
Wetted parts:316L (optional Ra < 0.8 µm)
Ambient temperature operation:-40 °C ... +70 °C
Fill material density:≥ 0.7 g/cm
Repeatability:≤ 1 mm
Process temperature:-40 °C ... +150 °C
Process pressure:-1 bar ... 64 bar
Output current:< 250 mA
Hysteresis:2 mm
Enclosure rating:IP 67
Ripple:≤ 5 Vpp
Power consumption:< 10 mA
Capacitive load:100 nF
Supply voltage:10 V DC ... 55 V DC
Ambient storage temperature:-40 °C ... +80 °C
VDE protection class 2:+
Connection type:Round connector M12 x 1, 4-pin
Medium:Fluids
Accuracy of sensor element:± 2 mm
