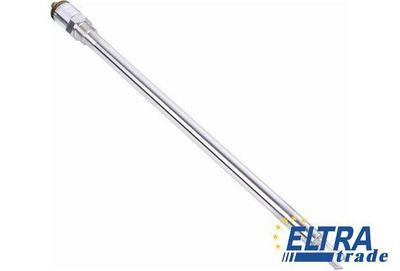

Sick LFV230-XXTGBTPM1200

Level sensors
Sick LFV230-XXTGBTPM1200

We are sorry, but Sick LFV230-XXTGBTPM1200 is no longer available to order.

Specification:

Part Number6041921
Resolution:≤ 1 mm
Repeatability:≤ 1 mm
Housing material:Stainless steel 1.4404, PEI
Temperature drift:0,03 mm/K
Supply voltage:10 V DC ... 55 V DC
Signal voltage LOW:0 V +- 1 V
Connection type:Round connector M12 x 1, 4-pin
Process pressure:-1 bar ... 64 bar
Hysteresis:2 mm
Signal voltage HIGH:Vs - < 3 V
Enclosure rating:IP 67
Process temperature:-40 °C ... +150 °C
Ambient temperature operation:-40 °C ... +70 °C
VDE protection class 2:+
Accuracy of sensor element:± 2 mm
Wetted parts:316L (optional Ra < 0.8 µm)
Medium:Fluids
Silicon free:-
Ripple:≤ 5 Vpp
Inductive load:≤ 1 H
Capacitive load:100 nF
Measurement:Switch
Initialization time:< 2 s
Output current:< 250 mA
Power consumption:< 10 mA
Viscosity:0.1 mPas ... 10,000 mPas
Fill material density:≥ 0.7 g/cm
Response time:500 ms
Probe length:1,200 mm
Ambient storage temperature:-40 °C ... +80 °C
Process connection:G ¾ A PN 64
