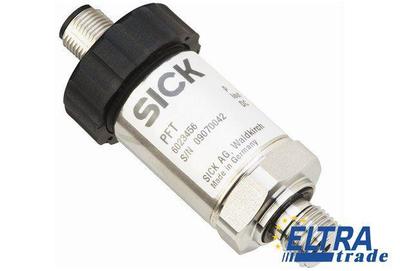

Sick PFT-SRB6X0SGDSSAAMSSZ

Pressure sensor PFT
Sick PFT-SRB6X0SGDSSAAMSSZ
307.80
One click request

Specification:

Part Number6042169
Vibration load:20 g according to IEC 60068-2-6 (vibration under resonance)
Seal:Without seal
Supply voltage:10 V DC ... 30 V DC
Shock load:1000 g according to IEC 60068-2-27 (mechanical shock)
CE-conformity:Pressure equipment directive: 97/23/EC, EMC directive: 2004/108/EC, EN 61 326-2-3
Storage temperature:-40 °C ... 100 °C
Temperature coefficient in rated temperature range:Mean TC of span ≤ 0.2 % of span / 10 K, Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar)
Weight sensor:200 g
Enclosure rating:IP 67
Dielectric strength:500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even under fault conditions)
Output signal:4...20 mA
Process connection:G 1/2 B according to EN 837
Response time (10 % ... 90 %):≤ 1 ms (≤ 10 ms at medium temperatures below < -30°C for pressure ranges up to 25 bar or with flush-mounted membrane)
Non-linearity:<= +/- 0.2 % (of span (Best Fit Straight Line, BFSL) according to IEC 61298-2)
Process temperature:-30 °C ... 100 °C
Rated temperature range:0 °C ... 80 °C
Housing material:Stainless steel
Pressure port:Standard
Wetted parts:Standard: Stainless steel
Ambient temperature:-20 °C ... 80 °C
Long-term drift/one-year stability:<= +/- 0.2 % of span (at reference conditions)
Accuracy:<= +/- 0.5 % (of span)
Pressure type:Gauge pressure
Non-repeatability:<= +/- 0.1 % of span
CE-conformity:+
Electrical safety:Short-circuit protection: QA towards M, Protection class: III, Overvoltage protection: 36 V DC, Reverse polarity protection: L+ towards M
Protection class III:+
Measuring range:0 bar ... 6 bar
Connection type:M12 x 1, 4-pin, IP 67
