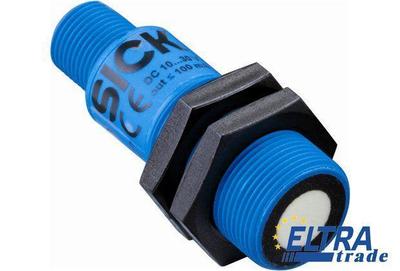

Sick UM18-211165101

Ultrasonic sensors
Sick UM18-211165101
One click request


Part Number6048414
Response time:32 ms
Protection class:III
Hysteresis:3 mm
Switching output :1 x NPN (200 mA)
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Detection area (typical):See diagrams
Initialization time:< 300 ms
Supply voltage Vs :DC 10 V ... 30 V
Sending axis:Straight
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Ultrasonic frequency (typical):320 kHz
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Connection type:Male connector, M12, 4-pin
Indication:2 x LED
Working range, limiting range:30 mm ... 250 mm, 350 mm
Weight:15 g
Resolution:0.2 mm
Enclosure rating:IP 67
Repeatability :± 0.15 %
Switching frequency:25 Hz
Power consumption :≤ 1.2 W
Output time:8 ms
Accuracy :0.17 % / K
