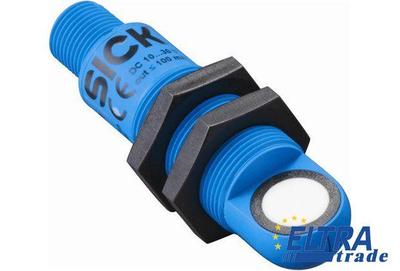

Sick UM18-212165102

Ultrasonic sensors
Sick UM18-212165102
Price on Request
One click request

Sick UM18-212165102 is outdated.


Part Number6048419
Ultrasonic frequency (typical):400 kHz
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Hysteresis:5 mm
Enclosure rating:IP 67
Response time:64 ms
Supply voltage Vs :DC 10 V ... 30 V
Protection class:III
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Output time:16 ms
Connection type:Male connector, M12, 4-pin
Sending axis:Angled
Initialization time:< 300 ms
Power consumption :≤ 1.2 W
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Switching frequency:12 Hz
Resolution:0.2 mm
Working range, limiting range:65 mm ... 350 mm, 600 mm
Indication:2 x LED
Accuracy :0.17 % / K
Detection area (typical):See diagrams
Repeatability :± 0.15 %
Weight:20 g
Switching output :1 x NPN (200 mA)
