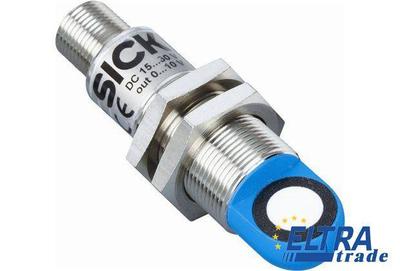

Sick UM18-217127112

Ultrasonic sensors
Sick UM18-217127112
One click request


Part Number6048389
Weight:30 g
Temperature compensation:+
Repeatability :± 0.15 %
Supply voltage Vs :DC 10 V ... 30 V
Protection class:III
Response time :32 ms
Ultrasonic frequency (typical):380 kHz
Detection area (typical):See diagrams
Working range, limiting range:20 mm ... 150 mm, 250 mm
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
Connection type:Male connector, M12, 5-pin
Additional function:Teach-in of analog output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Invertible analog output
Functions may vary depending on sensor type
Multifunctional input (MF):1 x MF
Enclosure rating:IP 67
Sending axis:Angled
Analog output:1 x 0 V ... 10 V (≥ 100 k&;937;)
Initialization time:< 300 ms
Resolution:≥ 0.069 mm
Accuracy :± 1 %
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Indication:2 x LED
Power consumption :≤ 1.2 W
Output time:8 ms
Resolution analog output:12 bit
