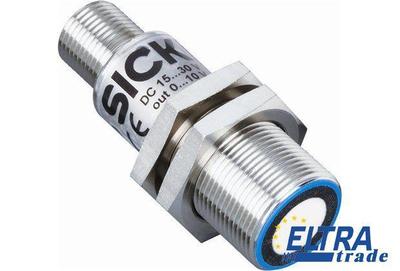

Sick UM18-21812A211

Ultrasonic sensors
Sick UM18-21812A211
One click request


Part Number6048402
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Enclosure rating:IP 67
Temperature compensation:+
Connection type:Male connector, M12, 5-pin
Output time:20 ms
Working range, limiting range:120 mm ... 1,000 mm, 1,300 mm
Weight:25 g
Sending axis:Straight
Switching output :1 x push-pull: PNP/NPN (100 mA)
Data interface:IO-Link
Repeatability :± 0.15 %
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Functions may vary depending on sensor type
Switching frequency:10 Hz
Power consumption :≤ 1.2 W
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
Hysteresis:20 mm
Multifunctional input (MF):1 x MF
Response time:80 ms
Accuracy :± 1 %
Resolution:≥ 0.069 mm
Protection class:III
Supply voltage Vs :DC 10 V ... 30 V
Indication:2 x LED
Initialization time:< 300 ms
Ultrasonic frequency (typical):200 kHz
Detection area (typical):See diagrams
