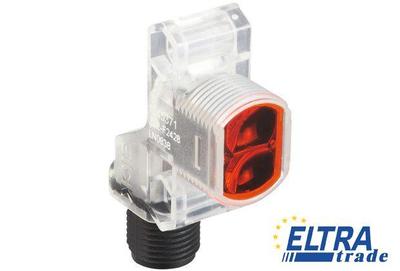

Sick ZT2-N3228

Photoelectric proximity Z-sensors
Sick ZT2-N3228

We are sorry, but Sick ZT2-N3228 is no longer available to order.


Part Number1045472
Light spot size (distance):10.5 mm (50 mm)
Housing material:Glass fiber reinforced ABS plastic, Plastic
Switching output:NPN
Sensing range max.:0 mm ... 50 mm
Dimensions (W x H x D):13.6 mm x 45.2 mm x 31.7 mm
Ambient operating temperature:-25 °C ... 50 °C
Switching mode:Light switching
Items supplied:Mounting nut M18
Power consumption:< 20 mA
Housing design (light emission):Hybrid
Supply voltage:10 V DC ... 30 V DC
Thread diameter (housing):M18 x 1
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Output current Imax.:50 mA
Switching frequency:200 Hz
Light source:LED
Enclosure rating:IP 67
Sensing range:0 mm ... 50 mm
Type of light:Infrared light
Wave length:880 nm
Ambient storage temperature:-40 °C ... 70 °C
Connection type:Connector M12, 4-pin
Protection class:III
Circuit protection:A, D
