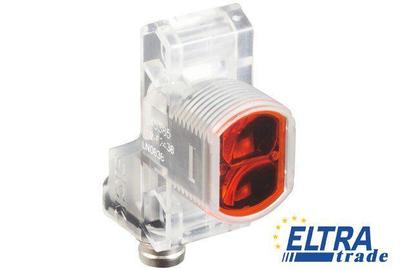

Sick ZT2-N5238

Photoelectric proximity Z-sensors
Sick ZT2-N5238

We are sorry, but Sick ZT2-N5238 is no longer available to order.


Part Number1045484
Thread diameter (housing):M18 x 1
Switching mode:Light switching
Wave length:880 nm
Protection class:III
Circuit protection:A, D
Sensor/detection principle:Photoelectric proximity sensor, energetic
Ambient storage temperature:-40 °C ... 70 °C
Type of light:Infrared light
Switching frequency:200 Hz
Ambient operating temperature:-25 °C ... 50 °C
Dimensions (W x H x D):13.6 mm x 41.9 mm x 31.7 mm
Housing design (light emission):Hybrid
Switching output:NPN
Sensing range max.:5 mm ... 155 mm
Power consumption:< 20 mA
Light source:LED
Sensing range:5 mm ... 155 mm
Housing material:Glass fiber reinforced ABS plastic, Plastic
Light spot size (distance):31 mm (100 mm)
Connection type:Connector M8, 4-pin
Items supplied:Mounting nut M18
Enclosure rating:IP 67
Output current Imax.:50 mA
Supply voltage:10 V DC ... 30 V DC
