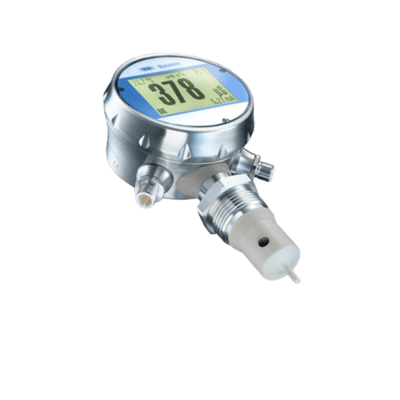

Baumer AFI4-5810.4002.0320

Temperature sensor

The Baumer AFI4-5810.4002.0320 CombiLyz Conductivity Measurement Sensor is an all-in-one solution designed for precise conductivity measurement in various applications. It features a compact, food-safe, and hygienic design with all wetted parts made from PEEK material. Baumer conductivity sensor is 3-A sanitary standards and FDA-compliant, making it suitable for industries with stringent hygiene requirements.

Datasheet:

• Measuring Range: 50 µS/cm to 1000 mS/cm
• Accuracy: ± 1.0 % FSR for 0 to 1 mS/cm to 0 to 500 mS/cm, ± 1.5 % FSR for 0 to 1000 mS/cm
• Compensated Temperature Range: -20°C to 150°C
• Temperature Compensation: 0.0 to 5.0 % FSR/K, adjustable
• Step Response Time: ≤ 2.0 s
• Sample Time: ≤ 0.4 s
• Process Connection: G 1 A Hygienic, PEEK
• Output Signal: 2 x 4-20 mA
• Degree of Protection: IP 67 without connector, IP 69K with appropriate cable
• Power Supply: 15-35 V DC
• Electrical Connection: Plastic, 2 x M16 x 1.5 Cable Gland

Advantages:

• High Accuracy: Ensures precise conductivity measurements for reliable process control.
• Hygienic Design: Meets 3-A sanitary standards and FDA compliance, suitable for food and pharmaceutical industries.
• Compact and Versatile: The sensor's compact design allows for easy installation in various setups.
• Dual Output: Provides two 4-20 mA outputs for flexible integration into existing systems.
• Wide Measuring Range: Capable of measuring conductivity from 50 µS/cm to 1000 mS/cm, accommodating diverse applications.
