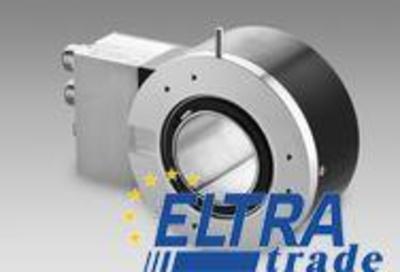

Baumer G1M2H Absolute encoders
Item Number: G1M2H
| Voltage supply | 10...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤50 mA (24 VDC) |
| Operating temperature | -25...+85 °C |
| Inputs | SSI clock Control signals UP/DOWN and zero |
- Overview
- Datasheet
- Alternative numbers
- Comments
| Inputs | SSI clock Control signals UP/DOWN and zero |
| Shaft type | ø25.4 mm (through hollow shaft) |
| Consumption w/o load | ≤50 mA (24 VDC) |
| Size (flange) | ø90 mm |
| Function | Multiturn |
| Resistance | DIN EN 60068-2-6 Vibration 10 g, 16-2000 Hz DIN EN 60068-2-27 Shock 200 g, 6 ms |
| Absolute accuracy | ±0.025 ° |
| Diagnostic functions | Self-diagnosis Multiturn sensing |
| manufacter SKU | G1M2H |
| Relative humidity | 95 % non-condensing |
| Connection | Connector M23, 12-pin |
| Interface | SSI |
| Operating speed | ≤3800 rpm (mechanical) ≤6000 rpm (electric) |
| Code sequence | CW/CCW coded by connection |
| Number of turns | 4096 / 12 bit |
| Interference immunity | DIN EN 61000-6-2 |
| Reverse polarity protection | Yes |
| Output stages | SSI data: linedriver RS485 Diagnostic outputs push-pull |
| Emitted interference | DIN EN 61000-6-4 |
| Operating temperature | -25...+85 °C |
| Code | Gray or binary |
| Voltage supply | 10...30 VDC |
| Approval | UL approval / E63076 |
| Materials | Housing: aluminium Flange: aluminium |
| Protection DIN EN 60529 | IP 54 IP 65 (optional) |
| Starting torque | ≤0.35 Nm |
| Initializing time typ. | 20 ms after power on |
| Weight approx. | 890 g |
| Sensing method | Optical |
| Steps per turn | 8192 / 13 bit |
| Rotor moment of inertia | 2000 gcm² |
