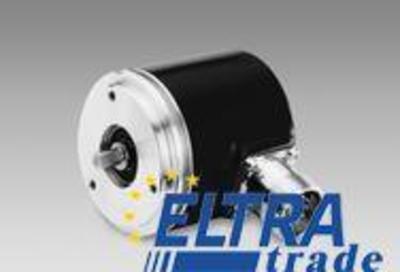

Baumer GA240 - parallel Absolute encoders
Item Number: GA240 - parallel
| Voltage supply | 10...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤60 mA (24 VDC) |
| Interface | 13 parallel outputs |
| Operating temperature | -25...+85 °C -40...+85 °C (optional) |
| Inputs | Control signals UP/DOWN and zero STORE ENABLE |
- Overview
- Datasheet
- Alternative numbers
- Comments
| Resistance | DIN EN 60068-2-6 Vibration 10 g, 16-2000 Hz DIN EN 60068-2-27 Shock 200 g, 6 ms |
| Sensing method | Optical |
| Interference immunity | DIN EN 61000-6-2 |
| Weight approx. | 250 g |
| Initializing time typ. | 20 ms after power on |
| Emitted interference | DIN EN 61000-6-4 |
| Inputs | Control signals UP/DOWN and zero STORE ENABLE |
| Relative humidity | 95 % non-condensing |
| Voltage supply | 10...30 VDC |
| Rotor moment of inertia | 14.5 gcm² |
| Connection | Connector M27, 21-pin Cable 1 m |
| Flange | Clamping flange |
| Steps per turn | 8192 / 13 bit |
| Function | Singleturn |
| Size (flange) | ø58 mm |
| Materials | Housing: aluminium Flange: aluminium |
| Code | Gray or binary |
| Output stages | Push-pull short-circuit proof |
| Code sequence | CW/CCW coded by connection |
| Starting torque | ≤0.015 Nm (IP 54) ≤0.03 Nm (IP 65) |
| Operating temperature | -25...+85 °C -40...+85 °C (optional) |
| Interface | 13 parallel outputs |
| Consumption w/o load | ≤60 mA (24 VDC) |
| Admitted shaft load | ≤20 N axial ≤40 N radial |
| Approval | UL approval / E63076 |
| Diagnostic functions | Self-diagnosis Code continuity check |
| manufacter SKU | GA240 - parallel |
| Absolute accuracy | ±0.025 ° |
| Shaft type | ø10 mm solid shaft |
| Reverse polarity protection | Yes |
| Operating speed | ≤10000 rpm (mechanical) ≤6000 rpm (electric) |
| Protection DIN EN 60529 | IP 54 (without shaft seal) IP 65 (with shaft seal) |
