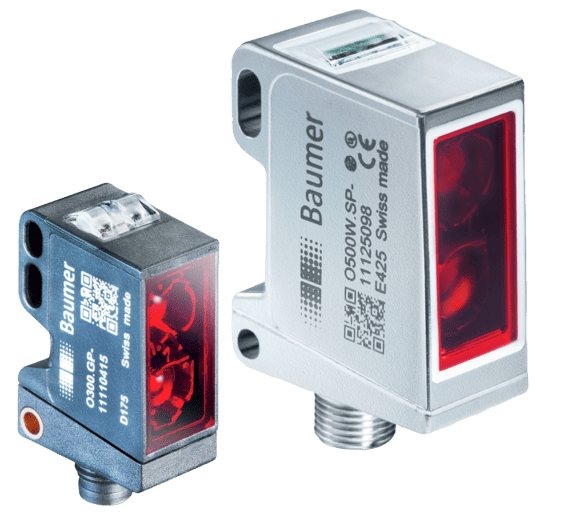

Baumer O500.GR-PV1T.72O/T003
Diffuse sensors with background suppression - for longer ranges
art. 11135864
- background suppression
- 60 ... 550 mm
- pulsed red LED
- PNP complementary
- qTeach / 1-Step Teach-in
- connector M12 4 pin
- -25 ... 60 °C
- IP 67
Item Number:
O500.GR-PV1T.72O/T003
The price is not final. Please check with the manager!
Contact our experts
- Overview
- Comments
| Baumer Article no | 11135864 |
| Type | Background suppression |
| Light source | Pulsed red LED |
| Sensing distance Tw | 60 ... 550 mm |
| Sensing range Tb | 30 ... 600 mm |
| Power on indication | LED green |
| Light indicator | LED yellow |
| Sensing distance adjustment | qTeach / 1-Step Teach-in |
| Wave length | 630 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1В° |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 ... 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | < 3 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25В ...В +60 В°C |
