Beckhoff EL1819

EtherCAT Terminal

IN STOCK!

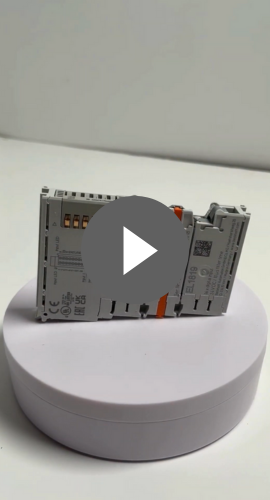

Beckhoff EL1819 is a digital input terminal that receives 24 V binary control signals from the process level and transmits them to the higher-level automation unit in electronic format. The EtherCAT terminal includes 16 channels.

The status of their signals is indicated by LEDs. The power contacts are connected through. In the EL1819, the reference ground for all inputs is the 0V power pin.

Special features:

• Input specification type 1/3
• Fast input filter providing low latency - 10 µs
• Connection occurs without the use of additional tools (direct connection method for single-core wires)
• Can be used with capacitive or inductive sensors
• Technology for 1-wire connection of multi-channel direct type sensors in minimal space
• Compact, which saves space in the control cabinet
• High density design with 16 connection points in a 12mm terminal block housing

Datasheet:

• Connection: 1-wire
• EN 61131-2, type 1/3
• Inputs: 16
• Voltage: 24 V/DC (-15 %/+20 %)
• “1“ signal voltage: 11 … 30 V (EN 61131-2, type 3)
• “0“ signal voltage: -3 … +5 V (EN 61131-2, type 1/3)
• Input current: 3 mA (EN 61131-2, type 3)
• Electrical isolation (V): 500 (E-bus/field potential)
• Input filter: 10 µs
• Bit width in the process image:    16 inputs
• Conductor types: stranded, solid wire, ferrule
• No address or configuration setting
• Stranded wire conductors and ferrules: spring actuation by screwdriver
• Solid wire conductors: direct plug-in technique;
• Temperature °C:    -25 … 60
• Relative humidity: 95 %, no condensation
• Weight (g): 65
• Protection: IP 20
• EMC immunity/emission: EN 61000-6-2 / EN 61000-6-4
• Approvals: UL, CE, Ex
• Vibration/shock resistance: EN 60068-2-6 / EN 60068-2-27
