Endress+Hauser 5H3B15-GRIBAEAFBAFDDS0BA1

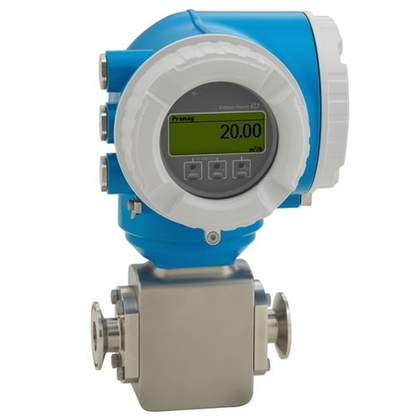

Proline Promag H 300 electromagnetic flowmeter

The 5H3B15-GRIBAEAFBAFDDS0BA1 is part of the Proline Promag H 300 series, an electromagnetic flowmeter designed for hygienic applications in industries such as food, beverage, and life sciences. This flowmeter is known for its compact design and high flexibility in operation and system integration.

Datasheet:

• Measuring Range: 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min)
• Medium Temperature Range: -20 to +150°C (-4 to +302°F)
• Process Pressure: Up to 40 bar (580.15 psi)
• Liner Material: PFA (Perfluoroalkoxy)
• Electrode Materials: 316L stainless steel, Alloy C22, Tantalum, Platinum
• Process Connections: Stainless steel, PVDF, PVC adhesive sleeve
• Seals: EPDM, FKM, Kalrez, silicone
• Housing: Compact dual-compartment with IP69 and up to 3 I/Os
• Display: Backlit with touch control and WLAN access

Advantages:

• Hygienic Design: Suitable for demanding applications with high hygiene requirements.
• Energy Efficiency: No pressure loss due to cross-section constriction.
• Maintenance-Free: No moving parts, ensuring long-term reliability.
• Diagnostic Information: Full access to process and diagnostic data through numerous I/Os and Ethernet.
• Heartbeat Technology: Integrated verification for compliance and process safety.
• Flexible Installation: Numerous hygienic process connections and remote display options.
