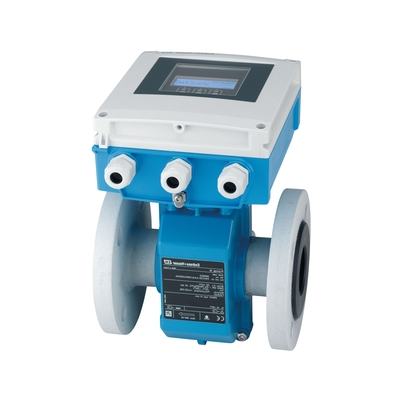

Endress+Hauser 5W4C1H

Flow Meter

5W4C1H from Endress Hauser is an electromagnetic flowmeter in the Promag W400 series, designed for volumetric flow measurement of liquids. It is widely used in water supply and wastewater systems, process lines, and tariff metering.

The 5W4C1H is a version with a 4" (DN100) flange connection and integrated electronics supporting the HART protocol and a 4-20 mA output signal.

Datasheet:

• Device Code: 5W4C1H
• Diameter: 4″ (DN100)
• Connection: lap joint flange
• Supply Voltage / Interface: 100–240 VAC / 24 VAC / DC, 4-20 mA + HART
• Accuracy: ±0.5% of reading ±1 mm/s / Advanced version: ±0.2% ±2 mm/s
• Temperature Limits (depending on gasket material) for rubber gaskets: approx. 0 … +80 °C
• Measuring Range / Typical: Up to ~1250 US gpm (approximate data for DN100)
• Corrosion Protection: Complies with EN ISO 12944 (for underground or submersible installation)
• Maximum Pressure: Up to ~40 bar (depending on version)
• Materials: Corrosion-resistant casing, available in plastic, aluminum, and other materials depending on design.
