Endress+Hauser 7R2CRM-AABEJEADAAED2SKA1+AAPM

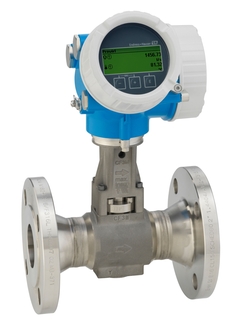

Vortex flowmeter

Endress+Hauser 7R2CRM-AABEJEADAAED2SKA1+AAPM

This multifunctional flow transmitter is designed for mass flow measurement of steam in hazardous areas. Developed by Endress+Hauser, it offers high accuracy and reliability for a variety of industrial applications.

Datasheet:

• Approval: AA (for use in hazardous areas)
• Output; Input: 4-20mA HART, pulse-frequency/switch output
• Display; Control: SD03 4-line, backlit; touch control + data backup function
• Housing: GT20 double compartment, aluminum, coated, remote
• Cable, remote version: 30 m/90 ft
• Electrical connection: M20 clay
• Sensor version; DSC sensor; Measuring tube: Mass vapor; 316L; 316L (integrated pressure/temperature measurement), -200...+400°C/-328...+750°F
• DSC sensor seal: Graphite, -200°C...+400°C, -328°F...752°F
• Pressure component: Hydraulic accumulator 40 bar/580 psi abs
• Connection process: PN40, flange EN1092-1-B1
• Flow calibration: 0.75% volume 3-point
• Device model: A1
• Interface display language: English
• Accessories included: Transmitter holder (pipe mounting) DN20-DN80 3/4"-3"

Advantages:

• High accuracy of steam mass flow measurement
• Robustness for use in hazardous areas
• Flexible configuration options due to various outlet and inlet options
• Easy to use thanks to intuitive display and touch screen operation
• Robust design for harsh industrial environments
• Wide measuring range for a variety of applications
