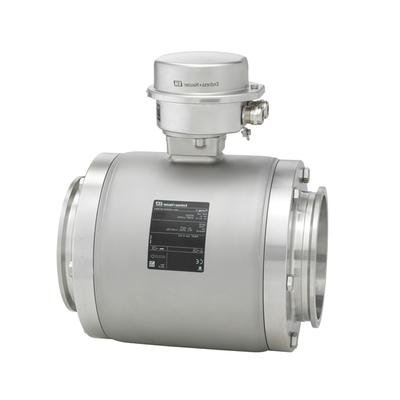

Endress+Hauser Proline Promag H10

Electromagnetic flowmeter

Promag h10 flow meter from Endress Hauser offers a cost-effective solution for flow measurement with high accuracy under various process conditions.

The unified concept of Proline flowmeters ensures a high degree of measurement reliability and stability, as well as a unified control circuit.
The advantages of the Promag h 10 include zero pressure loss, vibration resistance, and easy installation and commissioning.

Items:

• 5HBB02, DN02 1/12"
• 5HBB04, DN04 5/32"
• 5HBB08, DN08 5/16"
• 5HBB15, DN15 1/2"
• 5HBB22, 1" ODT,SMS,ASME
• 5HBB26, DN25 DIN, JIS
• 5HBB40, DN40 1 1/2"
• 5HBB65, DN65 2 1/2"
• 5HBB80, DN80 3"
• 5HBB1H, DN100 4"
• 5HBB1Z, DN125 5"
• 5HBB1F, DN150 6"
• 5HBB50, DN50 2"

Specifications

• Pressure ranges: from PN 40, class 150, 20K
• Basic error: Volume flow rate (standard): ±0.5% o.r. ±1 mm/s (0.04 in/s)
• Output signal: 4-20 mA HART (active/passive), pulse/frequency/switching output Modbus RS485, 4-20 mA
• Mediated medium temperature range: -20 to +150 °C (-4 to +302 °F)
• Nominal diameter range: Diameter from 2 to 150 (from 1⁄₁₂ to 6")
• Protection rating: Standard: IP66/67, Type 4X enclosure

Material
Housing: PFA Electrodes: 1.4435 (316L); Alloy C22 Process connections: Stainless steel 1.4404 (F316L); PVDF; PVC adhesive sleeve Seals: Aseptic molded seal (EPDM, FKM, silicone)
