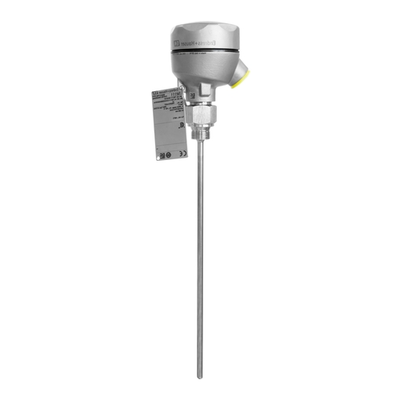

Endress+Hauser TLSR2

RTD-Assembly S.A. Style

Resistance Temperature Detector

S.A. Style
Cable sensor
universal range of application
usable with or without a thermowell

to use with or without thermowell (can be ordered separately)

mineral insulated (MI), flexible

up to 2.000 mm (78,74'')

1.4401 (316)

Not defined

Fixed thread:
NPT 1/4"
NPT 1/2"
G1/4"
G1/2"
Adjustable compression fitting:
NPT 1/8"
NPT 1/4"
NPT 3/8"
NPT 1/2"
G1/8"
G1/4"
G3/8"
G1/2"

rounded
flat

PT 100:
-200 ...600 В°C
(-328 ...1.112 В°F)

at 20 В°C: 10 bar (150 psi) without thermowell

class A according to IEC 60751
Band 5 (1/10 DIN)

depending on configuration

no

EN10204 3.1 Material traceability
