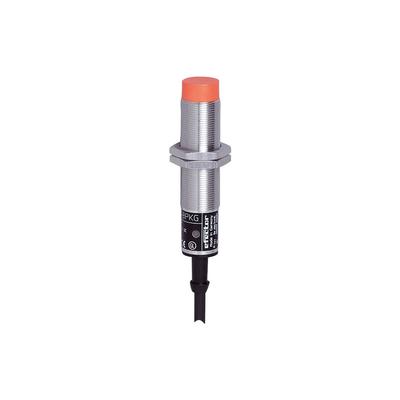

IFM Electronic IG6120

Inductive sensor
IFM Electronic IG6120
One click request
Switch frequency (Hz), DC300 Hz
sensitivity range8 mm
Working voltage, DC10...55 V
Voltage categoryDC
Electrical schemePNP/NPN
Display typeswitching status: 1 x LED yellow
Degree of protectionII
Used materialsbrass white bronze coated- sensing face: PC
Level of protectionIP 67
Technical codeIGA2008-FRKG/PH
Temperature of surroundings-25...80 В°C
Housing dimentions: length80 mm
Assemblynon-flush mountable
