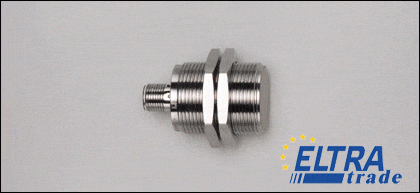

IFM Electronic IIT223 Inductive sensor

IFM Electronic IIT223
Item Number: IIT223
  • Inductive sensor
  • Metal thread
  • M30 x 1.5
  • DC PNP
  • gold-plated contacts
  • Quick disconnect
  • gold-plated contacts
  • Sensing range 10 mm [f]
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
Output typenormally open
Nominal current rating100 mA
Level of protectionIP 68 / IP 69K
Dimentions: Length50 mm
Name of the productIIT223
Temperature of surroundings0...100 В°C
Technical codeIIB3010-BPKG/M/V4A/US-104-DPS
Sensitivity range10 mm
Electrical schemeDC PNP
Switch frequency (Hz)100 Hz
Output status signalLED yellow (4 x 90В°)
Working voltage10...36 V DC
Assemblyflush mountable
JoiningM12 connector
