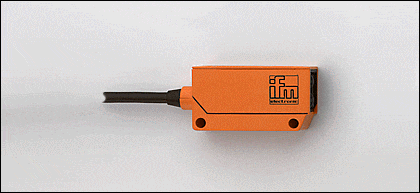

IFM Electronic OU5008 Through-beam sensor

IFM Electronic OU5008
Item Number: OU5008
  • Through-beam sensor
  • Receiver
  • Rectangular
  • plastics
  • DC NPN
  • Cable
Total price: 113.83
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
Technical codeOUE-DNKG
Name of the productOU5008
Level of protectionIP 67
Switch frequency (Hz)140 Hz
Light categoryInfrared light 950 nm
Working voltage10...55 V DC
Type of lens (material)glass
Nominal current rating250 mA
Sensitivity range6 m
JoiningPVC cable / 2 m; 3 x 0.34 mmВІ
Temperature of surroundings-25...80 В°C
Output status signalLED yellow
Electrical schemeDC NPN
Output typedark-on mode
Case material:modified PPO
