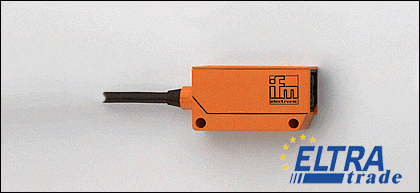

IFM Electronic OU5014 Diffuse reflection sensor

IFM Electronic OU5014
Item Number: OU5014
Diffuse reflection sensor, Rectangular, plastics, DC NPN, Cable
175.31
Quantity
-
+
Total price: 175.31
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
Name of the productOU5014
Output typelight-on mode
Level of protectionIP 67
Case material:modified PPO
Output status signalLED yellow
Nominal current rating250 mA
Light categoryInfrared light 880 nm
Temperature of surroundings-25...80 В°C
Electrical schemeDC NPN
Working voltage10...55 V DC
Switch frequency (Hz)160 Hz
Type of lens (material)glass
Working range1...200 (referred to white paper 200 x 200 mm) mm
Technical codeOUT-HNKG
JoiningPVC cable / 2 m; 3 x 0.34 mmВІ
SKUP13CZ3WI08509Y
