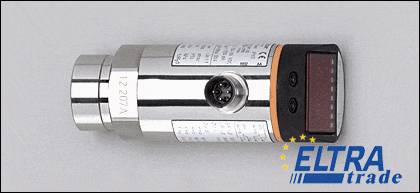

IFM Electronic PE7003 IFM Pressure sensors
Item Number: PE7003
Electronic pressure monitor, DC PNP/NPN, Sealing of the measuring cell: EPDM, Function programmable, Connector, 4-digit alphanumeric display, 2 outputs, OUT1 = switching output, OUT2 = switching output or diagnostic output, 4-digit alphanumeric display
- Overview
- Datasheet
- Alternative numbers
- Comments
| Bursting pressure min.: | 350 bar, 5075 psi, 35 MPa |
| Housing materials: | stainless steel (304S15), stainless steel 316L / 1.4404, PC, PBT, PEI, FPM, EPDM/X, PTFE |
| Shortcode: | PE-025-RDR14-QFRKG/US/ /E |
| Characteristics deviation : | < ± 0.25 (BFSL) / < ± 0.5 (LS) |
| Protection: | IP 67 |
| Operating voltage: | 18...36 V DC |
| Output function: | 2 x normally open / closed programmable or 1 x normally open / closed programmable + 1 x normally closed (diagnostic function) |
| Application: | Type of pressure: relative pressure , Liquids and gases, Cannot be used for oils |
| Pressure rating: | 150 bar, 2175 psi, 15 MPa |
| Product Name: | PE7003 |
| Measuring range: | 0...25 bar, 0...363 psi, 0...2.5 MPa |
| Medium temperature: | -25...80 °C |
| Connection: | M12 connector |
| SKU | JZMUEZV4X4IONJ |
| Electrical design: | DC PNP/NPN |
| Display: | Display unit: 3 x LED green , Switching status: 2 x LED yellow , Function display: 4-digit alphanumeric display , Measured values: 4-digit alphanumeric display |
| Ambient temperature: | -20...80 (UB < 32 V) / -20...60 (UB > 32 V) °C |
| Materials (wetted parts): | stainless steel 316L / 1.4404, ceramics (99.9 % Al2 O3), EPDM |
| Process connection: | G ? I |
