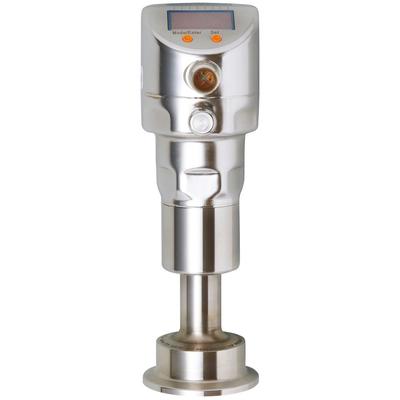

IFM Electronic PI2204 IFM Pressure sensors
Item Number: PI2204
Combined pressure sensor, 2 wires DC / 3 wires DC PNP/NPN, Function programmable, Diaphragm diameter: 34 mm, Fill fluid for pressure transfer: medical white oil (suited for use in food, FDA compliant), Connector, 4-digit alphanumeric display, 2-wire connection technology:, analogue output, 3-wire connection technology:, 2 outputs, OUT1 = switching output , OUT2 = switching output or analogue output, 4-digit alphanumeric display
- Overview
- Datasheet
- Alternative numbers
- Comments
| Materials (wetted parts): | stainless steel 316L / 1.4435 |
| Output function: | 1 x normally open / normally closed programmable + 1 x normally open / normally closed programmable or 1 x analogue (4...20 / 20...4 mA, scalable) |
| Application: | Type of pressure: relative pressure , Hygienic systems, viscous media and liquids with suspended particles, Liquids and gases |
| Measuring range: | -1.00...10.00 bar, -14.50...145.0 psi, -0.100...1.000 MPa |
| Product Name: | PI2204 |
| Shortcode: | PI-010-REZ01-MFRKG/US/ /P |
| Bursting pressure min.: | 100 bar, 1450 psi, 10 MPa |
| Housing materials: | stainless steel 316L / 1.4404, stainless steel 316L / 1.4435, PBT, PEI, PFA |
| Medium temperature: | -25...200 / -25...160 "" °C |
| Process connection: | Clamp DN 38 / 1?"" |
| Protection: | IP 67 / IP 68 / IP 69K |
| Pressure rating: | 50 bar, 725 psi, 5 MPa |
| Operating voltage: | 20...32 V DC (2L) / 18...32 V DC (3L) |
| Ambient temperature: | -25...80, at max. 160 °C medium temperature (-25...60 °C at max. 200 °C medium temperature) °C |
| SKU | AT7NTCFG9FL9GH |
| Display: | Display unit: LED green , Switching status: LED yellow , Function display: 4-digit alphanumeric display , Measured values: 4-digit alphanumeric display |
| Electrical design: | 2 wires DC / 3 wires DC PNP/NPN |
| Characteristics deviation : | < ± 0.2 |
| Connection: | M12 connector |
