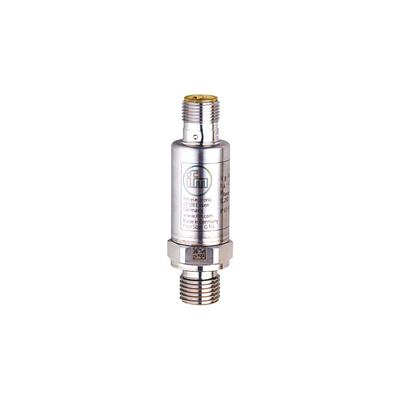

IFM Electronic PT5360 Pressure transmitter

IFM Electronic PT5360
Item Number: PT5360
  • Electronic pressure sensor
  • Operating voltage 8.5...36 DC V
  • 2-wire
  • M12 Connector
  • for industrial applications
Total price: 142.23
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
Average temperature-40...90 В°C
Technical codePT-600-SEG14-A-ZVG/US/ /W
Hysteresis fluctuation< В± 0,2 X21
Linearity diversion< В± 0,1 (BFSL) / < В± 0,2 (LS) X21
Nominal pressure1500 bar
Output of analog current4...20 mA
Bursting pressure, minimum2500 bar
Type of output signalanalogue signal
Level of protectionIP 67- IP 69K
Measuring scope0...600 bar
Materials of wetted parts1.4542 (17-4 PH / 630)
Outputs, total ammount1
Temperature of surroundings-40...90 В°C
Output typeanalogue
LinkM12 Connector
Working voltage, DC8.5...36 V
Long lasting stability< В± 0,1- (per 6 months) X21
Degree of protectionIII
Voltage categoryDC
Applyingfor industrial applications
