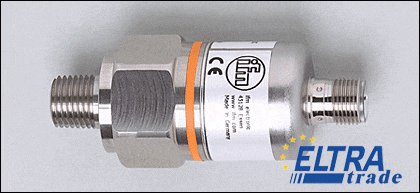

IFM Electronic PX9117 IFM Pressure sensors
Item Number: PX9117
Electronic pressure sensor, DC, e1 compliant, Analogue output
- Overview
- Datasheet
- Alternative numbers
- Comments
| Process connection: | ?" NPT A / M5 I |
| Pressure rating: | 145 psi |
| Protection: | IP 65 |
| Bursting pressure min.: | 450 psi |
| Medium temperature: | -25...90 °C |
| Product Name: | PX9117 |
| Ambient temperature: | -25...80 °C |
| Shortcode: | PA-001PRBN14-B-DVG/US/ /V |
| Output function: | 0...10 V analogue |
| Characteristics deviation : | < ± 0.25 (BFSL) / < ± 0.5 (LS) |
| Measuring range: | 0...15 psi |
| Operating voltage: | 16...32 V DC |
| Housing materials: | stainless steel 316L / 1.4404, FPM (Viton), PA, EPDM/X (Santoprene) |
| SKU | AYK5HRTZNDJ4XH |
| Electrical design: | DC |
| Connection: | M12 connector |
| Materials (wetted parts): | stainless steel (303S22), ceramics, FPM (Viton) |
| Application: | Type of pressure: relative pressure , Liquids and gases |
