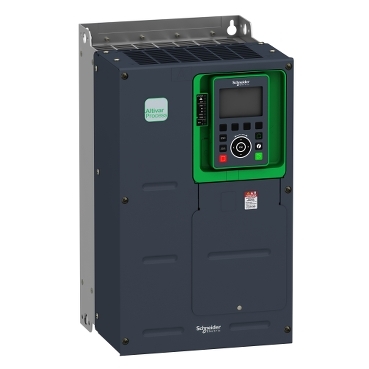

Schneider Electric ATV630D22S6

Altivar Process VSD

Schneider Altivar Process ATV600, ATV630 Drive for process and utilities. Standard version for asynchronous and synchronous motors.

Specifications:

• Without EMC filter
• IP 20 IEC 61800-5-1 / IP 20 IEC 60529
• 600 V (rated supply voltage)
• UL type 1 UL 508C
• 50...60 Hz - 5...5 %
• Forced convection (cooling type)
• 70 kA
• 30 hp 600 V normal duty / 25 hp 600 V heavy duty
• 26,9 A 600 V normal duty / 23,2 A 600 V heavy duty
• 4 kHz (nominal switching frequency)
