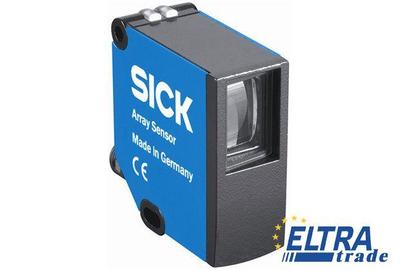

Sick AL20E-PM334S04

Sick AL20E-PM334S04
Item Number: AL20E-PM334S04
  • Detect position of edge of material
  • Reflector mode version also available
  • Compact, metal housing
Total price: 894.43
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1060037
Switching mode :Q (PNP)
Measuring range:30 mm
Wave length:400 nm ... 700 nm
Light spot size:50 mm x 10 mm
Light source:LED
Power consumption :< 3.1 W
Analog output QA:4 mA ... 20 mA
Initialization time :0.48 s
Housing material:Metal
Type of light:Visible white light
Output rate of analog output:1 ms
Dimensions (W x H x D):24.3 mm x 59.8 mm x 54.1 mm
Protection class:III
Repeatability :0.05 mm
Enclosure rating:IP 67
Ripple :≤ 5 V
Minimum contrast material/reflector:> 10 %
Resolution analog output:12 bit
Supply voltage:≤ 24 V DC
Output current Imax.:< 100 mA
Circuit protection:VS connections reverse-polarity protected
Output Q short-circuit protected
Interference suppression
Operating range:90 mm 110 mm
Multifunctional input MF:Teach-in on reflector from multifunction input from 15 s after booting
Sensing distance:100 mm
Weight:135 g
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Linearity :± 2 %
MDO :1.6 mm
Connection type:Male connector M12, 5-pin
Functional principle:Edge detection, reflector
