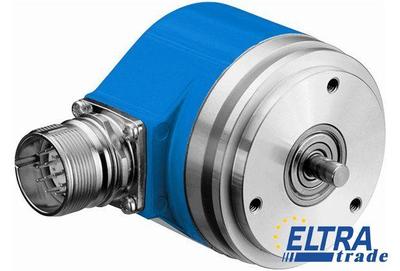

Sick ARS60-A1L32767

ARS60-A
Sick ARS60-A1L32767
594.75
One click request

Specification:

Part Number1032591
Max. number of steps per revolution:32,767
Max. number of revolutions:1
Mechanical interface:Solid shaft, Servo flange
Measuring step:360 ° /number of lines
Storage temperature range:-40 °C ... 100 °C
Error limits:0.035 ° (binary number of steps)
0.046 ° (non-binary number of steps)
Measuring step deviation:0.005 °, 0.016 °
Operating voltage range:10 V DC ... 32 V DC
Resolution power:32,767 x 1
Max. angular acceleration:500,000 rad/s²
Start up torque:0.25 Ncm
Permissible Load capacity of shaft:10 N (axial), 20 N (radial)
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Operating torque:0.2 Ncm
Operation of zero-set:≥ 100 ms
Repeat accuracy:0.005 °
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Shaft diameter:6 mm
Bearing lifetime:3.6 x 10^9 revolutions
Resistance to shocks:50 g (according to EN 60068-2-27)
Working temperature range:-20 °C ... 85 °C
MTTFd: mean time to dangerous failure:300 a (EN ISO 13849-1)
Enclosure rating:IP 66 (according to IEC 60529)
Initialization time:80 ms
Electrical interface:Cable, 11-pin, radial, 3 m
Moment of inertia of the rotor:48 gcm²
Maximum operating speed:10,000 /min (without shaft seal), 6,000 /min (with shaft seal)
Operating power consumption (no load):60 mA
