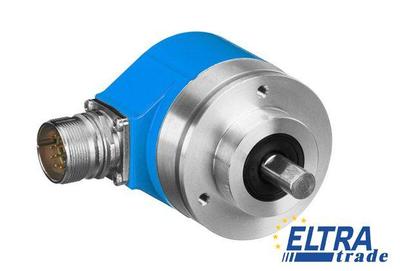

Sick ARS60-F4L00720 ARS60 CoreTech Absolute Encoders

Sick ARS60-F4L00720
Item Number: ARS60-F4L00720
  • Absolute singleturn encoder
  • Resolution: up to 15 bits (32,768 increments)
  • Electrical interface: SSI with gray code type or gray capped
543.05
Quantity
-
+
Total price: 543.05
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1037963
Electrical interface:Cable, 22-pin, radial, 3 m
Repeat accuracy:0.005 °
Maximum operating speed:10,000 /min (without shaft seal)
6,000 /min (with shaft seal)
Storage temperature range:-40 °C ... 100 °C
Initialization time:80 ms
Mechanical interface:Solid shaft, Face mount flange
Start up torque:0.4 Ncm
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Operating torque:0.3 Ncm
Max. number of steps per revolution:720
Bearing lifetime:3.6 x 10^9 revolutions
Operation of zero-set:≥ 100 ms
Shaft diameter:10 mm
Resistance to shocks:50 g (according to EN 60068-2-27)
Enclosure rating:IP 66, according to IEC 60529

Measuring step deviation:0.005 °, 0.016 °
Max. number of revolutions:1
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
EMC:According to EN 61000-6-2 and EN 61000-6-3
Moment of inertia of the rotor:54 gcm²
Working temperature range:-20 °C ... 85 °C
Error limits:0.035 ° (binary number of steps)
0.046 ° (non-binary number of steps)
Permissible Load capacity of shaft:20 N (radial)
10 N (axial)
Operating voltage range:10 V DC ... 32 V DC
Resolution power:720 x 1
Operating power consumption (no load):90 mA
Measuring step:360 ° /number of lines
Max. angular acceleration:500,000 rad/s²
