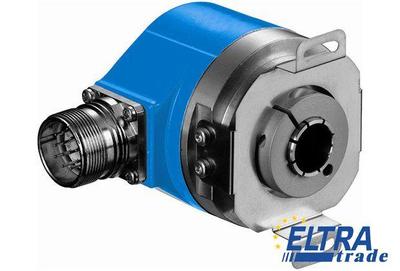

Sick ARS60-FAA05808 ARS60 CoreTech Absolute Encoders

Sick ARS60-FAA05808
Item Number: ARS60-FAA05808
  • Absolute singleturn encoder
  • Resolution: up to 15 bits (32,768 increments)
  • Electrical interface: SSI with gray code type or gray capped
523.69
Quantity
-
+
Total price: 523.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1037739
Bearing lifetime:3.6 x 10^9 revolutions
Measuring step:360 ° /number of lines
Mechanical interface:Blind hollow shaft
Working temperature range:-20 °C ... 85 °C
Shaft diameter:6 mm
8 mm
10 mm
12 mm
14 mm
15 mm 1/4 "
3/8 "
1/2 "
Operation of zero-set:≥ 100 ms
Max. angular acceleration:500,000 rad/s²
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Max. number of steps per revolution:5,808
Mass:0.3 kg
Permissible movement radial static/dynamic:± 0.3 mm, ± 0.1 mm
Error limits:0.035 ° (binary number of steps)
0.046 ° (non-binary number of steps)
Operating power consumption (no load):90 mA
Enclosure rating:IP 65 (according to IEC 60529), with mating connector fitted
MTTFd: mean time to dangerous failure:300 a (EN ISO 13849-1)
Max. number of revolutions:1
Start up torque:0.6 Ncm
Operating voltage range:10 V DC ... 32 V DC
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Maximum operating speed:3,000 /min
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Storage temperature range:-40 °C ... 100 °C
Permissible movement axial static/dynamic:± 0.5 mm, ± 0.2 mm
Operating torque:0.4 Ncm
Initialization time:80 ms
Resolution power:5,808 x 1
Measuring step deviation:0.005 °, 0.016 °
Electrical interface:Connector M23, 21-pin, radial
Resistance to shocks:50 g (according to EN 60068-2-27)
Repeat accuracy:0.005 °
