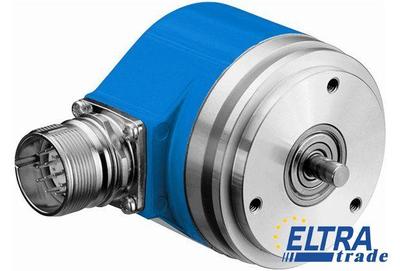

Sick ARS60-H1M32768 ARS60 CoreTech Absolute Encoders

Sick ARS60-H1M32768
Item Number: ARS60-H1M32768
  • Absolute singleturn encoder
  • Resolution: up to 15 bits (32,768 increments)
  • Electrical interface: SSI with gray code type or gray capped
Total price: 608.87
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1036653
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Storage temperature range:-40 °C ... 100 °C
Moment of inertia of the rotor:48 gcm²
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Error limits:0.035 ° (binary number of steps)
0.046 ° (non-binary number of steps)
Bearing lifetime:3.6 x 10^9 revolutions
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
MTTFd: mean time to dangerous failure:300 a (EN ISO 13849-1)
Max. angular acceleration:500,000 rad/s²
Enclosure rating:IP 66 (according to IEC 60529)
Electrical interface:Cable, 22-pin, radial, 5 m
Max. number of steps per revolution:32,768
Maximum operating speed:10,000 /min (without shaft seal), 6,000 /min (with shaft seal)
Working temperature range:-20 °C ... 85 °C
Measuring step:360 ° /number of lines
Measuring step deviation:0.005 °, 0.016 °
Shaft diameter:6 mm
Operating torque:0.2 Ncm
Initialization time:80 ms
Resolution power:32,768 x 1
Operating power consumption (no load):90 mA
Permissible Load capacity of shaft:10 N (axial), 20 N (radial)
Max. number of revolutions:1
Operation of zero-set:≥ 100 ms
Resistance to shocks:50 g (according to EN 60068-2-27)
Repeat accuracy:0.005 °
Start up torque:0.25 Ncm
Mechanical interface:Solid shaft, Servo flange
Operating voltage range:10 V DC ... 32 V DC
