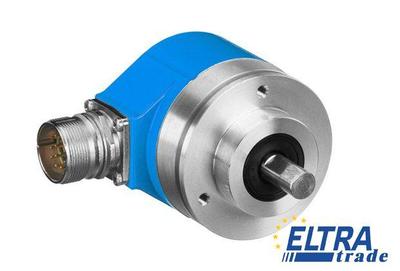

Sick ARS60-J4A01024 ARS60 CoreTech Absolute Encoders

Sick ARS60-J4A01024
Item Number: ARS60-J4A01024
  • Absolute singleturn encoder
  • Resolution: up to 15 bits (32,768 increments)
  • Electrical interface: SSI with gray code type or gray capped
Total price: 526.59
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1034373
EMC:According to EN 61000-6-2 and EN 61000-6-3
Max. angular acceleration:500,000 rad/s²
Enclosure rating:IP 65, according to IEC 60529, with mating connector fitted

Moment of inertia of the rotor:54 gcm²
Start up torque:0.4 Ncm
Operating torque:0.3 Ncm
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Bearing lifetime:3.6 x 10^9 revolutions
Resistance to shocks:50 g (according to EN 60068-2-27)
Permissible relative humidity:90 % (condensation of the optical scanning not permitted)
Working temperature range:-20 °C ... 85 °C
Permissible Load capacity of shaft:20 N (radial)
10 N (axial)
Maximum operating speed:10,000 /min (without shaft seal)
6,000 /min (with shaft seal)
Shaft diameter:10 mm
Electrical interface:Connector M23, 21-pin, radial
Operating voltage range:10 V DC ... 32 V DC
Measuring step deviation:0.005 °, 0.016 °
Mass:0.3 kg
Resolution power:1,024 x 1
Measuring step:360 ° /number of lines
Max. number of revolutions:1
Mechanical interface:Solid shaft, Face mount flange
Error limits:0.035 ° (binary number of steps)
0.046 ° (non-binary number of steps)
Operating power consumption (no load):90 mA
Storage temperature range:-40 °C ... 100 °C
Max. number of steps per revolution:1,024
Operation of zero-set:≥ 100 ms
Initialization time:80 ms
Repeat accuracy:0.005 °
