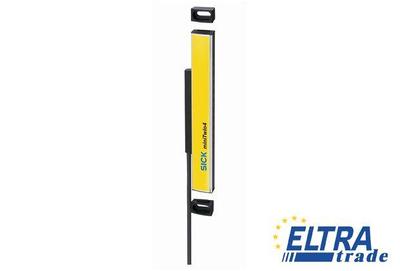

Sick C4MT-07234ABB03FB0 Light curtains

Sick C4MT-07234ABB03FB0
Item Number: C4MT-07234ABB03FB0
  • Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849)
  • Compact cross section (15 mm x 32 mm) with no dead zones
  • Cascadable twin stick design - sender and receiver in a single housing
902.18
Quantity
-
+
Total price: 902.18
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1207344
Integration via Flexi Soft safety controller:CANopenDeviceNetEtherCATEtherNet/IPModbus TCPPROFIBUS DPPROFINET
Type of output:PNP semiconductors, short-circuit protected, cross-circuit monitored
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Ripple:≤ 10 %
Supply voltage:24 V DC (19.2 V DC ... 28.8 V DC)
PFHd:Standalone system: 4.3  1E-09 (EN ISO 13849)
Ambient operating temperature:-20 °C ... +55 °C
Shock resistance:10 g, 16 ms (EN 60068-2-27)
Response time:≤ 13 ms
Switching voltage LOW:2 V DC
Connection type:Male connector M12, 5-pin
Restart interlock (delivery status):Deactivated
Beam coding:+
Housing cross-section (incl. system connection):15 mm x 32 mm
TM (mission time):20 a (EN ISO 13849)
Resolution:34 mm
Category:Category 4 (EN ISO 13849)
Display elements:LEDs
Restart interlock:+
Housing material:Aluminum alloy ALMGSI 0.5
Conductor cross-section:0.34 mm²
Storage temperature:-25 °C ... +70 °C
Switching current:300 mA
Safety integrity level:SIL3 (IEC 61508)
SILCL3 (EN 62061)
Typical range:0 m ... 5 m
External device monitoring (EDM):+
Automatic beam coding:+
Type:Type 4 (IEC 61496)
Weight:255 g
Protective field height:720 mm
Scanning range:0 m ... 4 m
External device monitoring (delivery status):Deactivated
Performance level:PL e (EN ISO 13849)
Safe SICK device communication via EFI/SDL:-
Permitted cable length:≤ 20 m
Switching voltage HIGH:24 V DC (VS - 2.25 V DC ... VS)
Enclosure rating:IP 65 (EN 60529)
Safe state in the event of a fault:At least one OSSD is in the OFF state.
Cable length:700 mm
Air humidity:15 % ... 95 %, non-condensing
Protection class:III (EN 61140)
Configuration method:Hard wired
Cascaded:-
Power consumption:≤ 3 A
Synchronization:Optical, without separate synchronization
