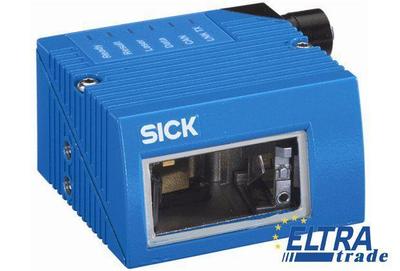

Sick CLV622-1120 Bar code scanners

Sick CLV622-1120
Item Number: CLV622-1120
  • CAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)
  • SMART620 code reconstruction technology
  • Flexible sorting, filtering, and logical functions
Total price: 1461.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1041795
Switching outputs:2 (via CMC600 in CDB620/CDM420)
Scanner design:Raster scanner
Raster height, number of lines, at distance:15 mm, 8, 200 mm
Code resolution:0.15 mm ... 0.5 mm
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
Ambient operating temperature:0 °C ... +40 °C
Housing:Die-cast aluminum
MTBF:40,000 h
Acoustic indicators:Beeper/buzzer (can be switched off, can be allocated as a result indication function)
Protection class:III (VDE 0106/IEC 1010-1)
Serial (RS-232, RS-422/485):+
Print ratio:2:1 ... 3:1
Field of view:≤ 50 °
Protocol (Ethernet):TCP/IP, EtherNet/IP, PROFINET, PROFINET Dual Port (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
Reading field:Front
Housing color:Light blue (RAL 5012)
Configuration software:SOPAS ET
Laser class:2 (EN 60825-1 (A2:2001-03))
Weight:205 g, without connecting cable
Data transmission rate (CAN bus):20 kbit/s ... 1 Mbit/s
Function (Serial (RS-232, RS-422/485)):Host, AUX
Protocol (CAN bus):CANopen, CSN (SICK CAN Sensor Network)
Enclosure rating:IP 65 (DIN 40 050)
Data transmission rate (Ethernet):10/100 Mbit
Permissible relative humidity:90 %, non-condensing
Light source:Visible red light (655 nm)
Storage temperature:-20 °C ... +70 °C
No. of codes per scan:1 ... 20 (Standard decoder), 1 ... 6 (SMART620)
Optical indicators:6 LEDs (Ready, Result, laser, Data, CAN, LNK TX)
Reading distance:55 mm ... 200 mm
Version:Short Range
Electrical connection:2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer/Server)
Dimensions:61 mm x 66 mm x 38 mm
Vibration resistance:EN 60068-2-6 (1995)
Front screen:Glass
CAN bus:+
Data transmission rate (Serial (RS-232, RS-422/485)):2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud
Function (Ethernet):Host, AUX
Remark (PROFIBUS DP):Optional via external connection module (CDF600-2)
Ambient light safety:2,000 lx, on bar code
Shock resistance:EN 60068-2-27 (1993)
Switching inputs:3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
Scanning frequency:400 Hz ... 1,200 Hz
No. of characters per reading interval:1,500, 500 (for multiplexer function in CAN operation)
Remark (Serial (RS-232, RS-422/485)):AUX (only RS-232)
Focus:Fixed focus
Bar code print contrast (PCS):≥ 60 %
Bar code types:Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, MSI/Plessey, Pharmacode, Telepen, UPC / GTIN / EAN
No. of codes per reading interval:1 ... 50 (auto-discriminating)
Connection type:Ethernet
Power consumption:4.5 W
Electromagnetic compatibility (EMC):EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
Reading pulse:Auto pulse, CAN, Non-powered, Switching inputs, Serial interface
Operating voltage:10 V DC ... 30 V DC
No. of multiple readings:1 ... 99
