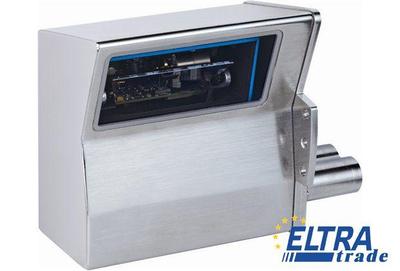

Sick CLV640-0831S01 Bar code scanners
Item Number: CLV640-0831S01
- Dynamic focus adjustment enables extended depth of field
- Integrated pushbuttons for auto setup and reading diagnostics
- CAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)
- Overview
- Datasheet
- Alternative numbers
- Comments
Sick CLV640-0831S01 is outdated.
Specification:
| Part Number | 1064718 |
| Protection class: | III (EN 61140) |
| DeviceNet: | + |
| Ambient light safety: | 2,000 lx, on bar code |
| Housing: | Stainless steel |
| Reading distance: | 47 mm ... 798 mm |
| Light source: | Visible red light (655 nm) |
| Weight: | 1,230 g, without connecting cable |
| Version: | Standard Density |
| Reading pulse: | Auto pulse, CAN, Switching inputs, Serial interface |
| Data transmission rate (Ethernet): | 10/100 Mbit |
| Power consumption: | 6.5 W |
| Front screen: | Plastic |
| Data transmission rate (CAN bus): | 20 kbit/s ... 1 Mbit/s |
| Oscillation frequency: | 0.5 Hz ... 6.25 Hz |
| No. of characters per reading interval: | 5,000, 500 (for multiplexer function in CAN operation) |
| Field of view: | ≤ 50 ° |
| Storage temperature: | -20 °C ... +70 °C |
| Laser class: | 2 (EN 60825-1 (A2:2001-03)) |
| Function (Ethernet): | Host, AUX |
| Protocol (Ethernet): | TCP/IP, EtherNet/IP, PROFINET, PROFINET Dual Port (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600) |
| Configuration software: | SOPAS ET |
| No. of multiple readings: | 1 ... 99 |
| Ambient operating temperature: | 0 °C ... +40 °C |
| PROFIBUS DP: | + |
| Serial (RS-232, RS-422/485): | + |
| Function (CAN bus): | SICK CAN sensor network (Master/Slave, Multiplexer/Server) |
| CAN bus: | + |
| Remark (DeviceNet): | Optional via external connection module (CDM + CMF) |
| Scanner design: | Line scanner |
| Reading field: | Oscillating mirror |
| Ethernet: | + |
| Shock resistance: | EN 60068-2-27 (1993) |
| Switching inputs: | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650) |
| Vibration resistance: | EN 60068-2-6 (1995) |
| Print ratio: | 2:1 ... 3:1 |
| Function (Serial (RS-232, RS-422/485)): | Host, AUX |
| Operating voltage: | 18 V DC ... 30 V DC |
| No. of codes per reading interval: | 1 ... 50 (auto-discriminating) |
| Housing color: | Stainless steel (unpainted) |
| Data transmission rate (Serial (RS-232, RS-422/485)): | 2,400 Baud ... 115 kBaud, AUX: 57.6 kBaud |
| Scanning frequency: | 400 Hz ... 1,200 Hz |
| Permissible relative humidity: | 90 %, non-condensing |
| Oscillating mirror functions: | Fixed (adjustable position), One shot, Oscillating (variable or fixed amplitude) |
| Enclosure rating: | IP 69K (DIN 40 050, part 9) |
| No. of codes per scan: | 1 ... 20 (Standard decoder), 1 ... 6 (SMART decoder) |
| MTBF: | 40,000 h |
| Electromagnetic compatibility (EMC): | EN 61000-6-3 (2001-10) / EN 61000-6-2:2005 |
| Electrical connection: | 2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector) |
| Switching outputs: | 4 (“Result 1”, “Result 2”, 2 via CMC600 in CDB650) |
| Protocol (CAN bus): | CANopen, CSN (SICK CAN Sensor Network) |
| Focus: | Dynamic focus control |
| Bar code types: | Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, MSI/Plessey, Pharmacode, Telepen, UPC / GTIN / EAN |
| Remark (PROFIBUS DP): | Optional via external connection module (CDF600-2) |
| Angle of deflection: | -20 ° ... 20 ° |
| Remark (Serial (RS-232, RS-422/485)): | AUX (only RS-232) |
| Bar code print contrast (PCS): | ≥ 60 % |
| Dimensions: | 121 mm x 164 mm x 84 mm |
| Connection type: | Ethernet |
| Code resolution: | 0.2 mm ... 1 mm |
