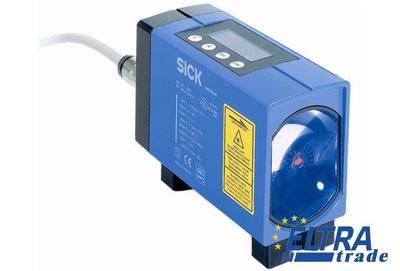

Sick DME5000-227 Long range distance sensors

Sick DME5000-227
Item Number: DME5000-227
  • Measurement range from 0.15 m to 300 m
  • Very fast measurement cycles
  • Highest accuracy, repeatability and system availability
5506.46
Quantity
-
+
Total price: 5506.46
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1028246
Typ. light spot size (distance):130 mm (at 70 m)
270 mm (at 150 m)
360 mm (at 220 m)
Connection type:Male connector, 1 x M12, 4-pin, 1 x M12, 8-pin
Light source :Laser, red
Effect of air pressure:0.3 ppm/hPa
Protection class :II
Power consumption:At 24 V DC < 1,000 mA
Mechanical load:Noise: EN 600 68-2-64
Shock: EN 600 68-2-27 / -2-29
Sine: EN 600 68-2-6
Output current IA :≤ 100 mA
Multifunctional input (MF) :1 x MF
Max. movement speed:10 m/s
Weight:Ca. 1,650 g
Laser class:2 (EN 60825-1 / CDRH)
Repeatability :1 mm
Enclosure rating:IP 65
Electromagnetic compatibility (EMC):EN 61000-6-2, EN 55011
Switching output :Push-pull: PNP/NPN (100 mA)
Accuracy:± 3 mm
Indication:Display
Data interface:HIPERFACE
Ambient temperature:Operation with heating: -40 ... 55 °C
Operation with cooling case: -40 ... 75 °C
Storage: -25 ... 75 °C
Resolution:0.05 mm ... 5 mm
Ripple :< 5 Vpp
Output rate:2 ms
Initialization time :0.9 s
Temperature drift:Typ. 0.1 mm/K
Supply voltage Vs:DC 18 V ... 30 V, limit values
Measuring range :0.15 m ... 150 m, on reflective tape "Diamond Grade"
Effect of air temperature:1 ppm/K
