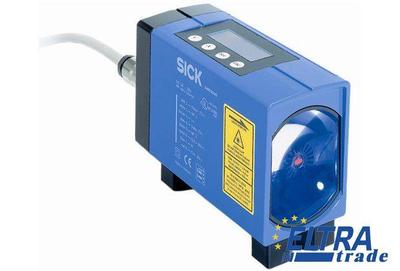

Sick DME5000-323 Long range distance sensors

Sick DME5000-323
Item Number: DME5000-323
  • Measurement range from 0.15 m to 300 m
  • Very fast measurement cycles
  • Highest accuracy, repeatability and system availability
5399.94
Quantity
-
+
Total price: 5399.94
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025253
Data interface:RS-422
Mechanical load:Noise: EN 600 68-2-64
Shock: EN 600 68-2-27 / -2-29
Sine: EN 600 68-2-6
Connection type:Male connector, M16, 8-pin
Resolution:0.05 mm ... 5 mm
Temperature drift:Typ. 0.1 mm/K
Switching output :Push-pull: PNP/NPN (100 mA)
Protection class :II
Max. movement speed:10 m/s
Effect of air temperature:1 ppm/K
Ambient temperature:Operation with heating: -40 ... 55 °C
Operation with cooling case: -40 ... 75 °C
Storage: -25 ... 75 °C
Weight:Ca. 1,650 g
Enclosure rating:IP 65
Electromagnetic compatibility (EMC):EN 61000-6-2, EN 55011
Effect of air pressure:0.3 ppm/hPa
Supply voltage Vs:DC 18 V ... 30 V, limit values
Output rate:2 ms
Multifunctional input (MF) :1 x MF
Output current IA :≤ 100 mA
Initialization time :1.5 s
Typ. light spot size (distance):130 mm (at 70 m)
270 mm (at 150 m)
360 mm (at 220 m)
Laser class:2 (EN 60825-1 / CDRH)
Repeatability :2 mm
Light source :Laser, red
Measuring range :0.15 m ... 300 m, on reflective tape "Diamond Grade"
Power consumption:At 24 V DC < 1,000 mA
Accuracy:± 5 mm
Ripple :< 5 Vpp
Indication:Display
