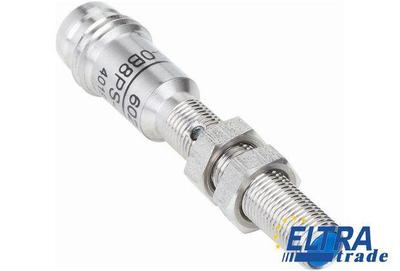

Sick IM04-0B6PS-ZR1 IH/IM Inductive proximity sensor

Sick IM04-0B6PS-ZR1
Item Number: IM04-0B6PS-ZR1
  • Operating distance up to 0,6 mm
  • Small housing sizes and low weight
  • Integrated LED indicator and snubber circuit
88.45
Quantity
-
+
Total price: 88.45
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6042085
Assured sensing range Sa:0.486 mm
Cable diameter:2.6 mm
Time delay before availability:≤ 10 ms
Aluminum (Al):Ca. 0.55
Housing length:22 mm
Temperature drift (of Sr):≤ 10 %
Enclosure rating:IP 67
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Electrical wiring:DC 3-wire
EMC:According to EN 60947-5-2
Repeatability:≤ 2 %
Tightening torque, max.:≤ 0.8 Nm
Short-circuit protection:+
Brass (Br):Ca. 0.65
Switching frequency:5,000 Hz
C:4 mm
Power consumption:≤ 10 mA
Stainless steel (V2A, 304):Ca. 0.8
Power-up pulse protection:-
Remark:Associated graphic see "Installation"
F:5 mm
Thread length:19 mm
Sensing range Sn:0.6 mm
Note:The values are reference values which may vary
Thread size:M4 x 0.5
Installation type:Flush
Ambient operating temperature:-25 °C ... 70 °C
Connection type:Cable with connector M8, 3-pin, with knurled nuts, 0.2 m
Housing cap material:Plastic, Polyester
A:0 mm
Hysteresis:1 % ... 10 %
Switching output:PNP
Supply voltage:10 V DC ... 30 V DC
Ripple:≤ 20 %
Voltage drop:≤ 2 V
Housing material:Stainless steel, Stainless steel
Cable material:PUR
B:0 mm
Output function:NO
Output current Ia:≤ 100 mA
Reverse polarity protection:+
D:1.8 mm
Copper (Cu):Ca. 0.5
E:0 mm
Design:Cylindrical
