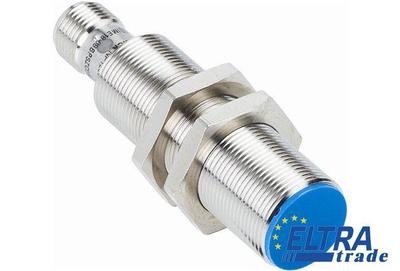

Sick IM18-08NNS-ZUK IH/IM Inductive proximity sensor

Sick IM18-08NNS-ZUK
Item Number: IM18-08NNS-ZUK
  • Size M18
  • IP 67 enclosure rating
  • Operating temperature from -25° C to +75° C
60.17
Quantity
-
+
Total price: 60.17
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017443
Power consumption:≤ 10 mA
A:18 mm
Supply voltage:10 V DC ... 30 V DC
Switching frequency:1,000 Hz
Output current Ia:≤ 300 mA
Housing length:40 mm
Cable material:PUR/PVC
Connection type:Cable, 3-wire, 2 m
Temperature drift (of Sr):± 10 %
Voltage drop:≤ 1.5 V
Installation type:Non-flush
Repeatability:≤ 2 %
Power-up pulse protection:+
Design:Cylindrical
Short-circuit protection:+
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Wire-break protection:1
Ambient operating temperature:-25 °C ... 75 °C
Enclosure rating:IP 67
EMC:According to EN 60947-5-2
Housing material:Metal, Nickel-plated brass
Sensing range Sn:8 mm
F:64 mm
Reverse polarity protection:+
Remark:Associated graphic see "Installation"
E:16 mm
Output function:NO
B:36 mm
Thread length:30 mm
Time delay before availability:≤ 10 ms
Ripple:≤ 10 %
C:18 mm
D:24 mm
Tightening torque, max.:25 Nm
Conductor cross-section:0.25 mm²
Hysteresis:1 % ... 10 %
Housing cap material:Plastic
Housing:Short-body
Switching output:NPN
Electrical wiring:DC 3-wire
Thread size:M18 x 1
