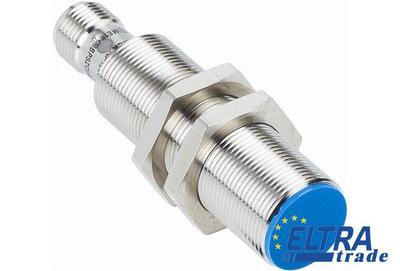

Sick IM18-08NPS-ZCK IH/IM Inductive proximity sensor

Sick IM18-08NPS-ZCK
Item Number: IM18-08NPS-ZCK
  • Size M18
  • IP 67 enclosure rating
  • Operating temperature from -25° C to +75° C
62.23
Quantity
-
+
Total price: 62.23
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017433
Supply voltage:10 V DC ... 30 V DC
Installation type:Non-flush
Sensing range Sn:8 mm
Design:Cylindrical
Hysteresis:1 % ... 10 %
D:24 mm
Tightening torque, max.:25 Nm
Wire-break protection:1
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Reverse polarity protection:+
Connection type:Connector M12, 4-pin
Temperature drift (of Sr):± 10 %
Switching output:PNP
Ripple:≤ 10 %
Repeatability:≤ 2 %
Housing:Short-body
Switching frequency:1,000 Hz
Power-up pulse protection:+
Ambient operating temperature:-25 °C ... 75 °C
Thread length:22 mm
Housing material:Metal, Nickel-plated brass
Voltage drop:≤ 1.5 V
Enclosure rating:IP 67
C:18 mm
A:18 mm
Electrical wiring:DC 3-wire
Housing cap material:Plastic
Housing length:45 mm
Output function:NO
B:36 mm
Time delay before availability:≤ 10 ms
Remark:Associated graphic see "Installation"
Output current Ia:≤ 300 mA
Power consumption:≤ 10 mA
EMC:According to EN 60947-5-2
Thread size:M18 x 1
F:64 mm
E:16 mm
Short-circuit protection:+
