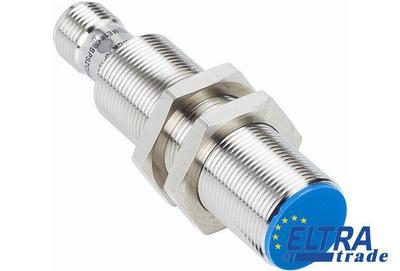

Sick IM30-10BNS-ZUK IH/IM Inductive proximity sensor

Sick IM30-10BNS-ZUK
Item Number: IM30-10BNS-ZUK
  • Size M30
  • IP 67 enclosure rating
  • Operating temperature from -25° C to +70° C
64.28
Quantity
-
+
Total price: 64.28
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017446
Repeatability:≤ 3 %
Tightening torque, max.:50 Nm
Cable material:PUR/PVC
E:0 mm
Voltage drop:≤ 1.5 V
C:30 mm
Hysteresis:1 % ... 10 %
Housing:Short-body
Output function:NO
Reverse polarity protection:+
Switching frequency:500 Hz
F:80 mm
Temperature drift (of Sr):± 10 %
Electrical wiring:DC 3-wire
Wire-break protection:1
Connection type:Cable, 3-wire, 2 m
Power consumption:≤ 10 mA
Housing length:40 mm
Time delay before availability:≤ 15 ms
Design:Cylindrical
Power-up pulse protection:+
Sensing range Sn:10 mm
Enclosure rating:IP 67
Switching output:NPN
Thread length:40 mm
Conductor cross-section:0.5 mm²
Housing material:Metal, Nickel-plated brass
EMC:According to EN 60947-5-2
A:10 mm
D:30 mm
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature:-25 °C ... 70 °C
Installation type:Flush
Short-circuit protection:+
Supply voltage:10 V DC ... 30 V DC
Thread size:M30 x 1.5
B:30 mm
Remark:Associated graphic see "Installation"
Ripple:≤ 10 %
Output current Ia:≤ 300 mA
Housing cap material:Plastic
