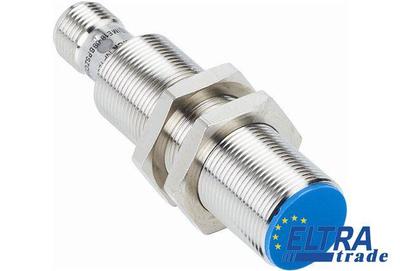

Sick IM30-10BPS-ZCK IH/IM Inductive proximity sensor

Sick IM30-10BPS-ZCK
Item Number: IM30-10BPS-ZCK
  • Size M30
  • IP 67 enclosure rating
  • Operating temperature from -25° C to +70° C
66.34
Quantity
-
+
Total price: 66.34
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017436
Remark:Associated graphic see "Installation"
Power consumption:≤ 10 mA
F:80 mm
Electrical wiring:DC 3-wire
Tightening torque, max.:50 Nm
Supply voltage:10 V DC ... 30 V DC
Housing:Short-body
Ripple:≤ 10 %
Sensing range Sn:10 mm
Power-up pulse protection:+
Thread size:M30 x 1.5
Repeatability:≤ 3 %
Housing material:Metal, Nickel-plated brass
EMC:According to EN 60947-5-2
Housing length:50 mm
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Thread length:37 mm
Enclosure rating:IP 67
C:30 mm
E:0 mm
Switching output:PNP
Output function:NO
Wire-break protection:1
B:30 mm
Short-circuit protection:+
Connection type:Connector M12, 4-pin
Reverse polarity protection:+
Ambient operating temperature:-25 °C ... 70 °C
Housing cap material:Plastic
Switching frequency:500 Hz
Output current Ia:≤ 300 mA
D:30 mm
Temperature drift (of Sr):± 10 %
Design:Cylindrical
Time delay before availability:≤ 15 ms
Hysteresis:1 % ... 10 %
Voltage drop:≤ 1.5 V
Installation type:Flush
A:10 mm
