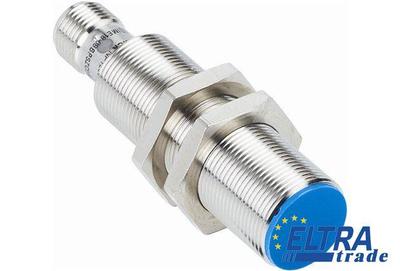

Sick IM30-10BPS-ZUK IH/IM Inductive proximity sensor

Sick IM30-10BPS-ZUK
Item Number: IM30-10BPS-ZUK
  • Size M30
  • IP 67 enclosure rating
  • Operating temperature from -25° C to +70° C
64.28
Quantity
-
+
Total price: 64.28
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017434
Housing:Short-body
Enclosure rating:IP 67
A:10 mm
EMC:According to EN 60947-5-2
C:30 mm
Housing length:40 mm
Time delay before availability:≤ 15 ms
B:30 mm
Short-circuit protection:+
Tightening torque, max.:50 Nm
Temperature drift (of Sr):± 10 %
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Voltage drop:≤ 1.5 V
Thread length:40 mm
Connection type:Cable, 3-wire, 2 m
Hysteresis:1 % ... 10 %
Supply voltage:10 V DC ... 30 V DC
Reverse polarity protection:+
Switching frequency:500 Hz
Housing material:Metal, Nickel-plated brass
Repeatability:≤ 3 %
Output function:NO
Thread size:M30 x 1.5
Sensing range Sn:10 mm
Power-up pulse protection:+
Ripple:≤ 10 %
Installation type:Flush
Housing cap material:Plastic
F:80 mm
Conductor cross-section:0.5 mm²
D:30 mm
Cable material:PUR/PVC
Design:Cylindrical
Wire-break protection:1
Power consumption:≤ 10 mA
Ambient operating temperature:-25 °C ... 70 °C
Output current Ia:≤ 300 mA
E:0 mm
Remark:Associated graphic see "Installation"
Switching output:PNP
Electrical wiring:DC 3-wire
