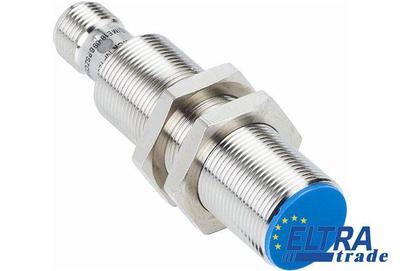

Sick IM30-15NNS-ZUK IH/IM Inductive proximity sensor

Sick IM30-15NNS-ZUK
Item Number: IM30-15NNS-ZUK
  • Size M30
  • IP 67 enclosure rating
  • Operating temperature from -25° C to +70° C
64.28
Quantity
-
+
Total price: 64.28
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017447
Thread length:25 mm
Tightening torque, max.:50 Nm
Connection type:Cable, 3-wire, 2 m
Ripple:≤ 10 %
Switching output:NPN
Conductor cross-section:0.5 mm²
Wire-break protection:1
Supply voltage:10 V DC ... 30 V DC
Time delay before availability:≤ 15 ms
Temperature drift (of Sr):± 10 %
EMC:According to EN 60947-5-2
Ambient operating temperature:-25 °C ... 70 °C
Power consumption:≤ 10 mA
Housing:Short-body
Installation type:Non-flush
Voltage drop:≤ 1.5 V
Housing cap material:Plastic
Enclosure rating:IP 67
Hysteresis:1 % ... 10 %
D:45 mm
Switching frequency:500 Hz
Power-up pulse protection:+
Output function:NO
C:30 mm
Housing length:40 mm
Electrical wiring:DC 3-wire
Repeatability:≤ 3 %
E:18 mm
Housing material:Metal, Nickel-plated brass
B:45 mm
F:120 mm
Thread size:M30 x 1.5
Short-circuit protection:+
Reverse polarity protection:+
Remark:Associated graphic see "Installation"
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Output current Ia:≤ 300 mA
Cable material:PUR/PVC
Sensing range Sn:15 mm
A:15 mm
Design:Cylindrical
