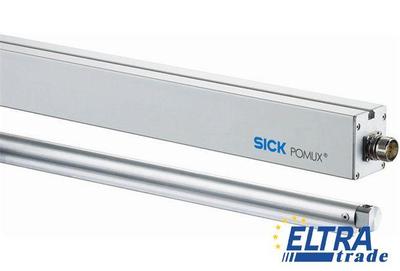

Sick KHK53-AXR00354 Linear Encoders & Transducers

Sick KHK53-AXR00354
Item Number: KHK53-AXR00354
  • Non-contact length measurement - maintenance-free, rugged, long lifetime
  • High reproducibility (0.3 mm / 1 mm), high system resolution (0.1 mm)
  • SSI and PROFIBUS interfaces
3057.91
Quantity
-
+
Total price: 3057.91
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick KHK53-AXR00354 is outdated.

Specification:

Part Number1030068
Electrical interface:SSI
MTTFd: mean time to dangerous failure:31 a (EN ISO 13849)
Connection type:Cable, 1.5 m
Standard (default setting SSI standard):RS-422 off
Position forming time:0.8 ms
Repeat accuracy:0.3 mm
Supply voltage:10 V ... 32 V
Storage temperature range:-40 °C ... +85 °C
Power consumption:250 mA
Mass:3.6 kg
Interface signals:Digital, serial
Measurement accuracy:± 1000 + ME (Tu-25° C) Tk µm
Position tolerance:± 10 mm
Resolution:0.1 mm
Piston speed:6.6 m/s
Data format:SSI 24 bits format
Resistance to vibration:10 g, 20 Hz ... 250 Hz (EN 60068-2-6)
Resistance to shocks:30 g, 10 ms (DIN EN 60 068-2-27)
Initialization time:2 s
Enclosure rating:IP 66 (IEC 60529)
Material:AlMgSiPbF28
Measuring range:354 m
Measuring length:0 m ... 354 m
Interface for parametrization:Data format: 1 start bit, 8 data bits, 1 stop bit, no parity, Data protocol: ASCII, Baud rate 9600 RS-422, RS-422, Four wire transmission, asynchrony, full duplex
EMC:(according to EN 61000-6-2 and EN 61000-6-4)
Working temperature range:-20 °C ... +60 °C
