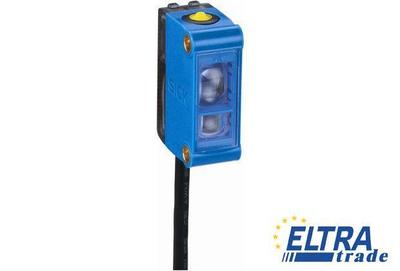

Sick KTM-WN11182P Contrast sensors

Sick KTM-WN11182P
Item Number: KTM-WN11182P
  • Small, tried-and-tested housing, also available in stainless steel
  • High grayscale resolution
  • Very large dynamic range means reliable detection of contrasts on glossy materials
205.74
Quantity
-
+
Total price: 205.74
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1062150
Ambient storage temperature:-20 °C ... +75 °C
Fieldbus interface:-
Connection type:Cable with connector M12, 4-pin
Dimensions (W x H x D):31.5 mm x 21 mm x 12 mm
Switching frequency :15 kHz
Output current Imax.:50 mA
Type of light:Visible blue light, Visible green light, Visible red light
Retention time (ET):28 ms, non-volatile memory
Light source :LED
Input, teach-in (ET):NPN: Teach: U < 2 V, Run: UV- 2 V or open
Enclosure rating:IP 67, IP 67
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Light spot size:1.5 mm x 6.5 mm
Housing design (light emission):Rectangular
UL File No.:NRKH.E348498
Ripple :≤ 5 Vpp
Output function:Light/dark switching
Wave length:470 nm, 525 nm, 625 nm
Max. web speed tech-in (dynamic):1 m/s
Switching mode:NPN
Weight:70 g
Supply voltage:12 V DC ... 24 V DC
Shock load:According to IEC 60068
Sensing distance tolerance:± 3 mm
Power consumption :< 50 mA
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Response time :35 µs
Jitter:15 µs
Ambient operating temperature:-10 °C ... +55 °C
Protection class:III
Sensing distance:12.5 mm
Light spot direction :Vertical
Housing material:ABS, Plastic
Teach-in mode:2-point teach-in static/dynamic + proximity to mark
